FLEXIBLE VENTILATION DUCTING

Patented composite PVC ventilation ducting for both positive (force) and negative (exhaust) applications.

To provide volumes of air to underground production areas to comply whit regulatory requirements.

Spiral force and Layflat ducting for positive pressure applications

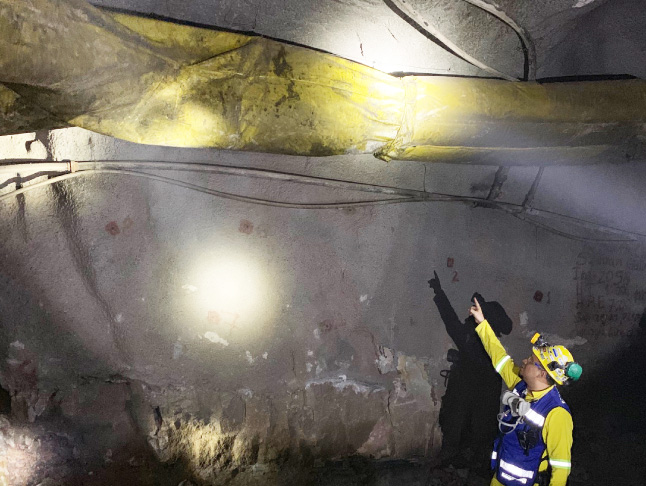

To Move unwanted or hazardous gases from underground production areas to return airways.

Exhaust ducting for negative pressure application.

SAFETY SPECIFICATIONS

All of our PVC coated fabric complies with all stipulation with in (MSHA) MINING SAFETY AND HEALT ADMINISTRATION for flexible ventilation ducting application.

TECHNICAL SPECIFICATION

PVC coated polyester ventilation tubes designed specifically for concussive underground hard rock mining environment.

Material inputs are accredit by ISO-9001-200 #951 (TUV America Inc).

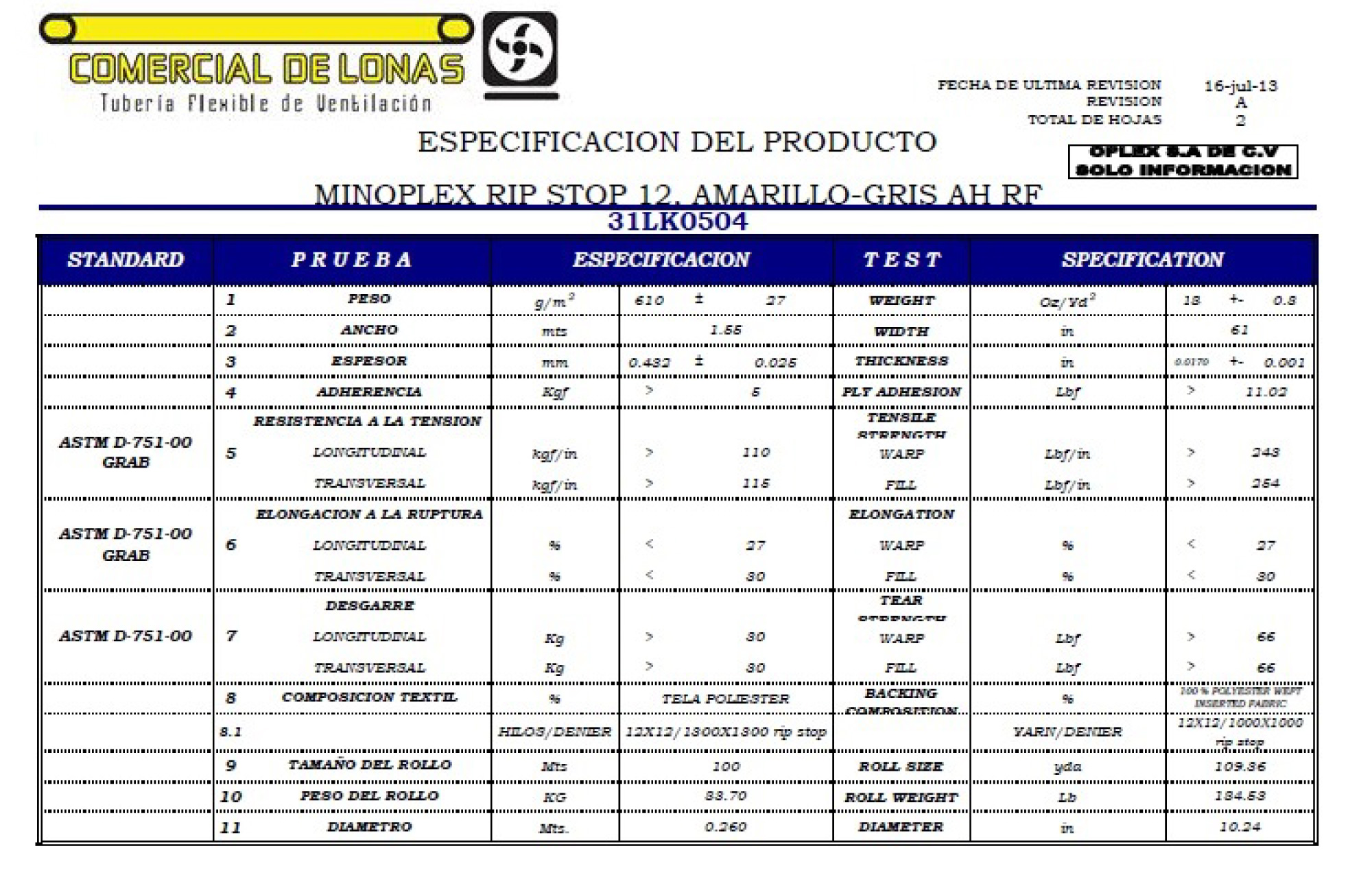

FABRIC SPECIFICATION

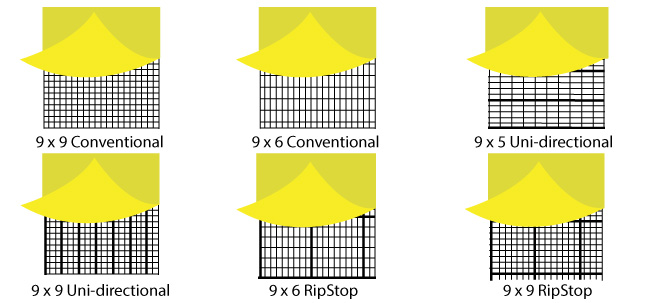

Minoplex 1212 RIP-STOP (Welf Inserted) 540 GR M2 FR ( BAse Metal Mines).

Minoplex 1212 RIP-STOP (Welf Inserted) 750 GR M2 FR ANTISTATIC (Coal Mines).
